• Roof rack w/crossbars
• Chrome front bumper
• Rear step bumper
• (2) front tow hooks
• Body-side molding
• Black running boards
• Crystalline headlamps
• Pwr heated mirrors
• Privacy glass
• Rear tri-door
• Speed-sensitive intermittent front wipers
• Rear window intermittent wiper w/washer

• Cloth front captains chairs w/lumbar
• Pwr driver seat
• 2nd row reclining 60/40 split bench seat-inc: dual recline, tip/slide
• 1st row cloth seat trim/2nd row vinyl seat trim
• Black vinyl floor covering
• Leather-wrapped tilt steering wheel w/speed control
• Tilt steering column
• Speed control
• Pwr windows
• Pwr door locks w/autolock
• Remote keyless entry-inc: 2-transmitters, door keypad
• SecuriLock Passive anti-theft system
• Manual front air conditioning
• Rear floor heat ducts
• Rear window defroster
• ETR AM/FM stereo w/CD/cassette
• Glove box
• Cigarette lighter
• (6) cup holders
• (4) 12V aux pwr points
• Day/Night rearview mirror
• 1st/2nd row assist handles
• Color-keyed sun visors-inc: illuminated vanity mirrors, secondary sun blade

• Driver & front passenger airbags
• 4-wheel anti-lock braking system
• 1st/2nd row safety belts w/adjustable D-rings
• (3) 2nd row child seat tether anchors
• (1) 3rd row child seat tether anchor
• Child-proof rear door locks

6.8L (415) SOHC SEFI V10 "TRITON" ENGINE

• (STD)

• 10 Cylinder Engine
• 3rd Row Seat
• 4-Speed A/T
• 4-Wheel Disc Brakes
• A/C
• ABS
• Adjustable Steering Wheel
• Aluminum Wheels
• AM/FM Stereo
• Automatic Headlights
• Bucket Seats
• Cassette
• CD Player
• Child Safety Locks
• Cloth Seats
• Conventional Spare Tire
• Cruise Control
• Driver Air Bag
• Driver Illuminated Vanity Mirror
• Driver Vanity Mirror
• Engine Immobilizer
• Floor Mats
• Four Wheel Drive
• Gasoline Fuel
• Heated Mirrors
• Intermittent Wipers
• Keyless Entry
• Leather Steering Wheel
• Luggage Rack
• Passenger Air Bag
• Passenger Illuminated Visor Mirror
• Passenger Vanity Mirror
• Power Door Locks
• Power Driver Seat
• Power Mirror(s)
• Power Outlet
• Power Passenger Seat
• Power Steering
• Power Windows
• Privacy Glass
• Rear A/C
• Rear Defrost
• Rear Seat Audio Controls
• Running Boards/Side Steps
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Tow Hitch
• Tow Hooks
• Universal Garage Door Opener
• Variable Speed Intermittent Wipers

• Vehicle
• Rear Door Type: Tri-Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5250
• Curb Weight - Front (lbs): 3575
• Curb Weight - Rear (lbs): 3615
• Gross Vehicle Weight Rating Cap (lbs): 8900
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Suspension
• Suspension Type - Front: Monobeam & Leaf
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 5240
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6830
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 12.83 x 0.47
• Tires
• Front Tire Order Code: T4T
• Rear Tire Order Code: T4T
• Spare Tire Order Code: T4T
• Front Tire Size: LT265/75R16
• Rear Tire Size: LT265/75R16
• Spare Tire Size: LT265/75R16
• Front Tire Capacity (lbs): 3000
• Rear Tire Capacity (lbs): 3000
• Spare Tire Capacity (lbs): 3000
• Revolutions/Mile @ 45 mph - Front: 658
• Revolutions/Mile @ 45 mph - Rear: 658
• Revolutions/Mile @ 45 mph - Spare: 658
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 50.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder w/BlockerBeam
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 44
• Fuel Tank Location: Aft-of-axle
• Exterior Dimensions
• Wheelbase (in): 137.1
• Length, Overall w/rear bumper (in): 226.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.2
• Overhang, Front (in): 37.4
• Overhang, Rear w/bumper (in): 52.3
• Ground to Top of Load Floor (in): - TBD -
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 8.1
• Rear Door Opening Height (in): 38.1
• Rear Door Opening Width (in): 55.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 100.9
• Cargo Area Length @ Floor to Seat 2 (in): 64.0
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.2
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 146.4
• Cargo Volume to Seat 2 (ft³): 100.7
• Cargo Volume to Seat 3 (ft³): 48.0
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.0
• Front Leg Room (in): 42.3
• Front Shoulder Room (in): 68.3
• Front Hip Room (in): 67.5
• Second Head Room (in): 41.0
• Second Leg Room (in): 40.5
• Second Shoulder Room (in): 67.0
• Second Hip Room (in): 66.9
• Summary

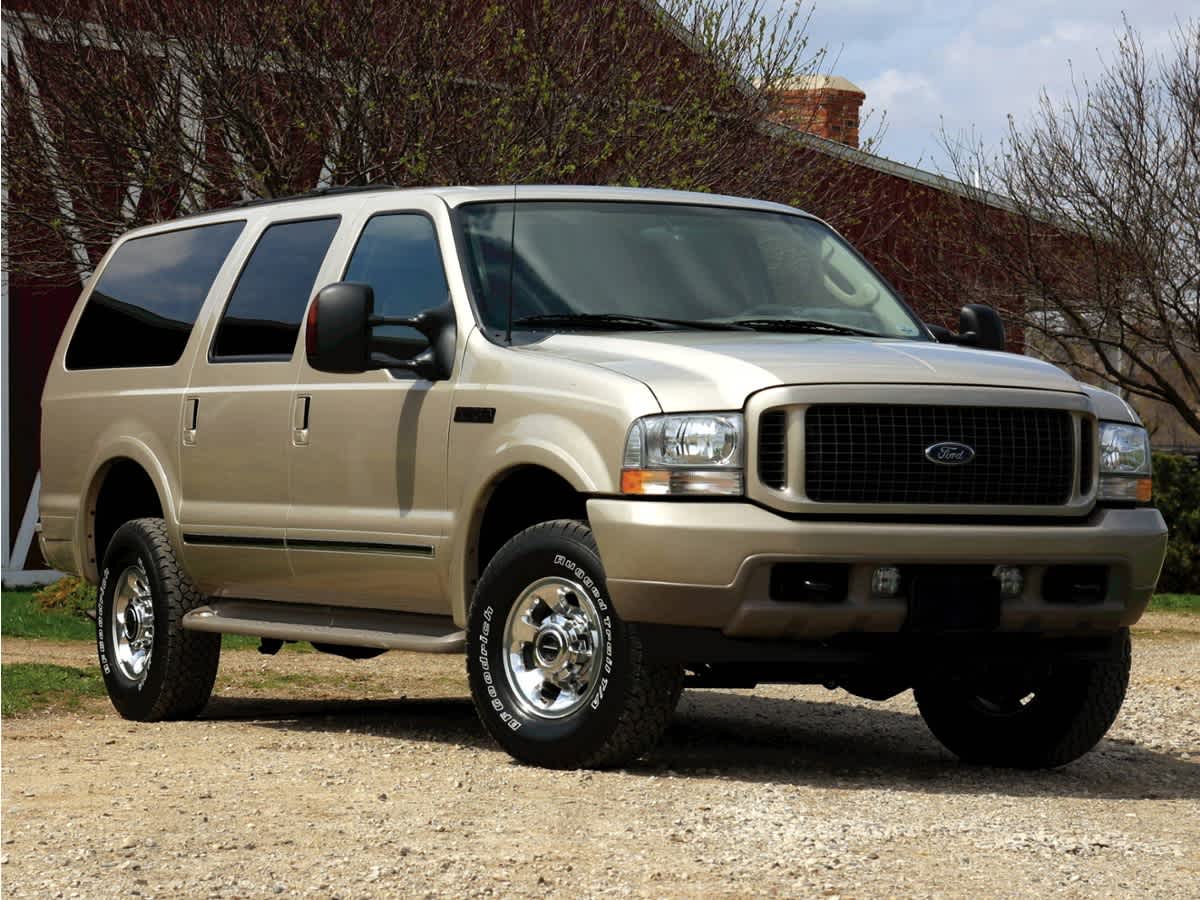

• Vehicle Name: Ford Excursion
• Body Style: 4 door
• Body Code: 137" WB
